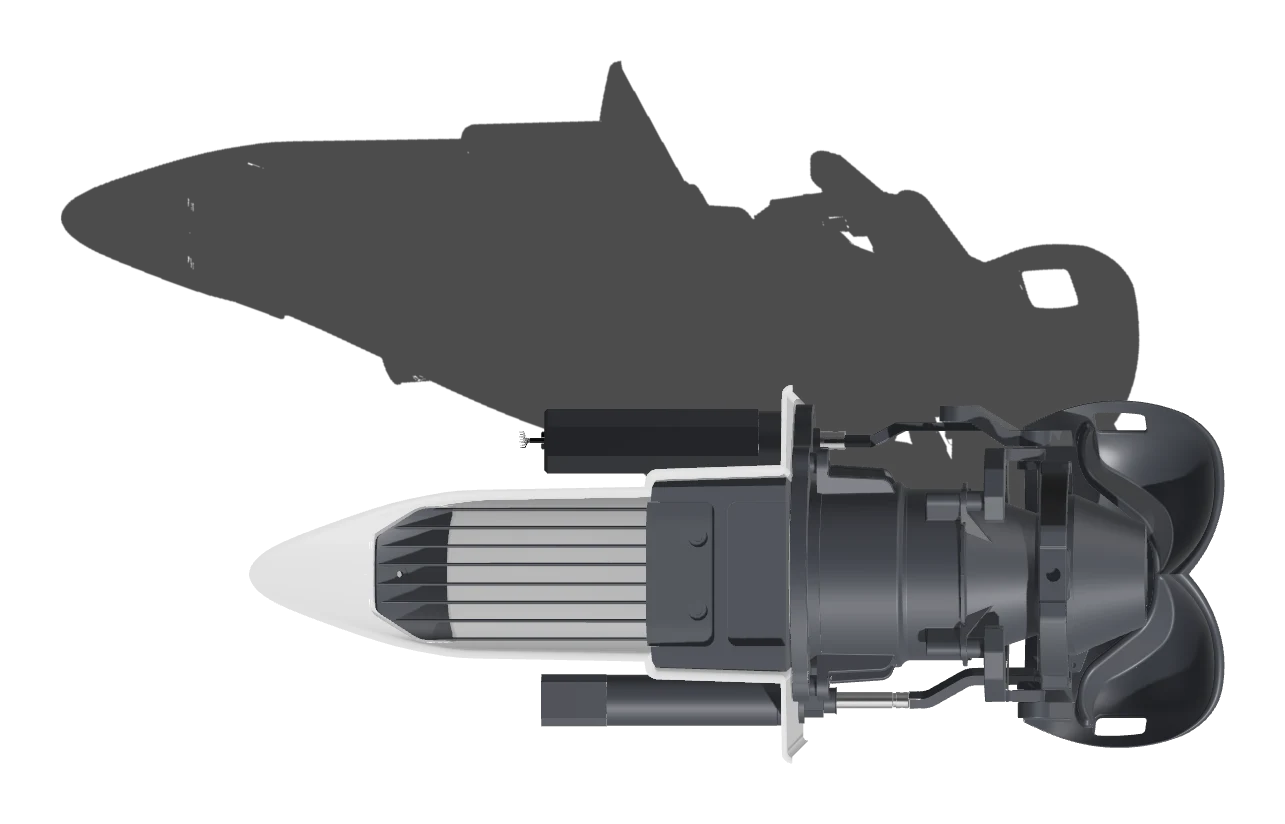

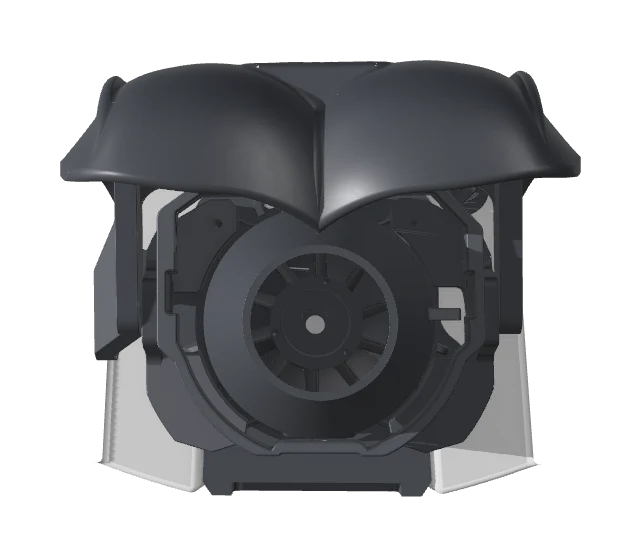

Agilis Water Jet 200
Higher-thrust axial flow propulsion for craft up to 2,000 kg per drive.
Specifications
| Max input power | up to 300 HP / 224 kW |
|---|---|
| Jet type | Axial flow |
| Impeller | Ø 196 mm, cast stainless steel, precision-balanced |
| Max rpm | up to 5,000 rpm |
| Max speed | up to 50 kn |
| Dry weight | 30 kg dry as supplied, 33 kg with trim nozzle fitted. Optional GRP wedge not included |
| Max recommended displacement | 2,000 kg single / 5,000 kg dual installation |
| Shaft angles | 3 |
| Controls | Electric, reverse actuation standard |
| Construction | Die-cast aluminium, painted finish |
The model is named 200; the as-built impeller diameter is 196 mm.
Why so light for the power rating: die casting explained.
Standard lead time 4 weeks, confirmed on order. 12-month warranty.
Materials & construction
Marine-grade by every measure
Every wetted component is specified for prolonged exposure to salt water and abrasive load.
| Intake & nozzle | GRP composite intake with marine-grade aluminium nozzle for hydrodynamic efficiency |
|---|---|
| Main shaft | High-strength duplex stainless steel with superior pitting and crevice corrosion resistance |
| Impeller | Cast stainless steel, precision-balanced, optimised for axial flow throughput |
| Wear ring | Aluminium housing with self-lubricating POM insert, maintains tight impeller clearance |
| Housing | Die-cast aluminium, painted finish, lighter and more durable than sand-cast alternatives |
Configure your drive
| Electric trim nozzle | ±10° pitch control across the full operating envelope |
|---|---|
| GRP wedge | Composite hull wedge for installation |
| USV controls preparation | Wiring loom, actuator package and control interface with electric steering |
Pricing on request, configured to your application. Standard lead time 4 weeks, confirmed on order. 12-month warranty from delivery.
Public datasheet
Full specification and modelled thrust and power absorption curves, open to read.
Installation and integration pack
Dimensioned drawings, electrical data and integration guidance, sent to your e-mail by our team.
Integrate the AWJ 200 into your platform
Application engineering, installation drawings and sizing support come with the drive.
